	Non-contact optical encoder Industry standard digital and analogue output options Customized resolution from 10nm to 5um Reference mark

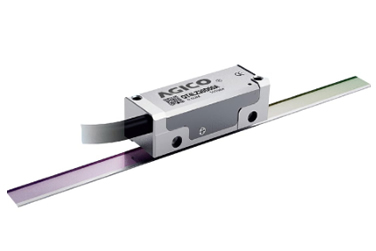

Resolution Supply Voltage Output Signal Reader/Scale distance Size(mm) QT4L Max. 10nm 5VDC digital/analogue 2.1±0.3mm 35*13.5*13.5

	Non-contact optical encoder Customized resolution from 10nm to 5um Reference mark High speed operation Integral set-up LED
Resolution Supply Voltage Output Signal Reader/Scale distance Size(mm) OR40 Max. 10nm 5VDC digital/analogue 1.95±0.2mm 36*14.8*13.5

	Non-contact optical encoder Industry standard digital and analogue output options Customized resolution from 10nm to 5um Reference mark High speed operation
Resolution Supply Voltage Output Signal Reader/Scale distance Size(mm) OR80/ ORM80 Max. 10nm 5VDC digital 0.3±0.1mm 20.5*12.7*9.55

	Non-contact, high reliability Absolute value output, no hysteresis Industrial standard interfaces: Biss or SSl Resolution: 29bit True absolute value, no battery required Integrated set-up LED Maximum length of linear encoder: 1000mm
Resolution Supply Voltage Output Signal Reader/Scale distance Size(mm) ORMA20 Max. 29Bit 5VDC Biss C/SSI 1.75±0.2mm 20.5*12.7*9.45

	Non-contact optical encoder Industry standard digital output Customized resolution from 10nm to 5um PCB reader design
Resolution Supply Voltage Output Signal Reader/Scale distance Size(mm) ORC80 Max. 0.1um 5VDC digital 0.9±0.2mm 28*10*5

	PCB Reader for Compact installation Non-contact, high reliability Absolute value output, no hysteresis True absolute value, no battery required
Resolution Supply Voltage Output Signal Reader/Scale distance Size(mm) ORCA20 Max. 0.0125um 5VDC Biss C 1.75±0.2mm 35*10*4.5
